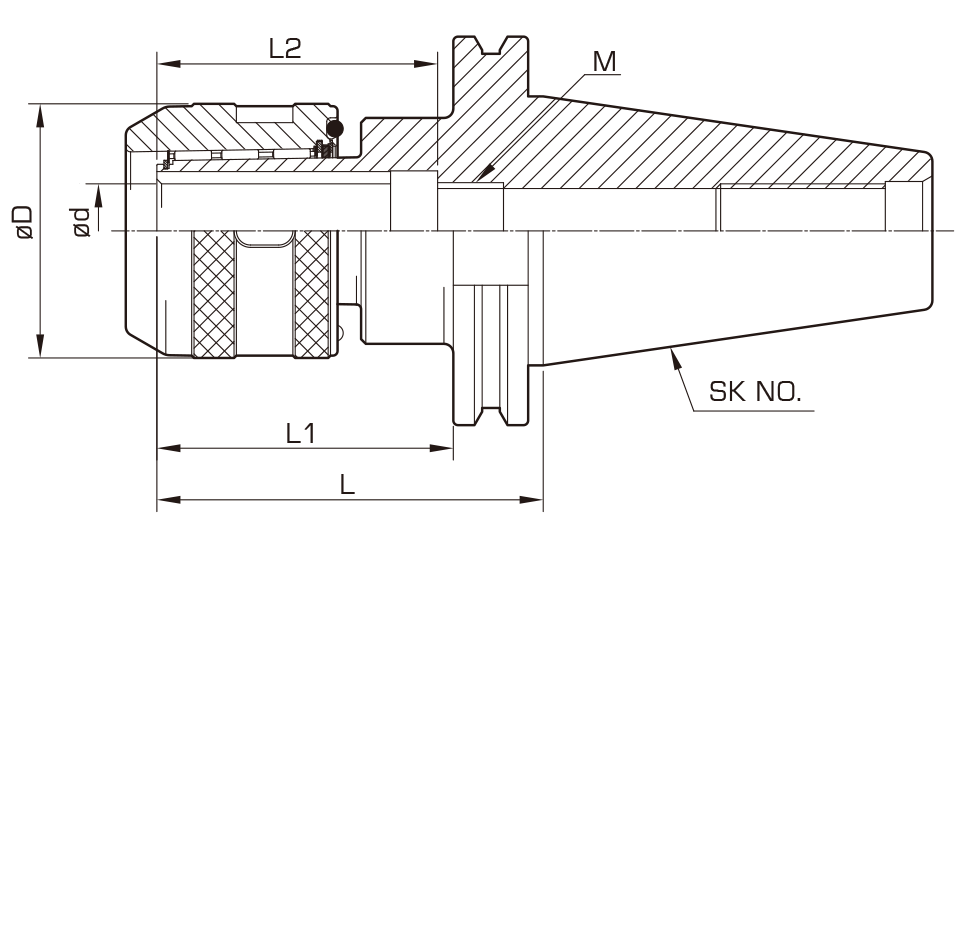

Dimensions
尺寸標示與詳細規格比較
| Order No. 订购编号 | ∅d1 | ∅D | M | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|
| SK40 PFC20-075 | 20 | 52 | M18*1.5 | 75 | 56 | 63 | PFC20 | PHS-ER32 |
| SK40 PFC20-090 | 20 | 52 | M18*1.5 | 90 | 71 | 63 | PFC20 | PHS-ER32 |
| SK40 PFC20-105 | 20 | 52 | M18*1.5 | 105 | 86 | 63 | PFC20 | PHS-ER32 |
| SK40 PFC20-120 | 20 | 52 | M18*1.5 | 120 | 101 | 63 | PFC20 | PHS-ER32 |
| SK40 PFC32-090 | 32 | 69 | M28*1.5 | 90 | 71 | 77 | PFC32 | PHS-PFC32 |
| SK40 PFC32-105 | 32 | 69 | M28*1.5 | 105 | 86 | 77 | PFC32 | PHS-PFC32 |
| SK40 PFC32-120 | 32 | 69 | M28*1.5 | 120 | 101 | 77 | PFC32 | PHS-PFC32 |
| Order No. 订购编号 | ∅d1 | ∅D | M | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|
| SK50 PFC32-105 | 32 | 69 | M28*1.5 | 105 | 86 | 77 | PFC32 | PHS-PFC32 |
| SK50 PFC32-135 | 32 | 69 | M28*1.5 | 135 | 116 | 77 | PFC32 | PHS-PFC32 |
