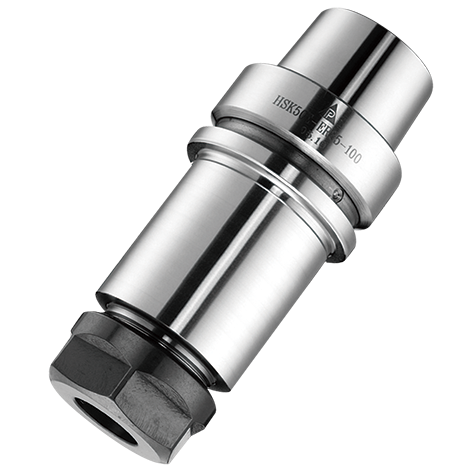

Dimensions
尺寸標示與詳細規格比較
| Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|---|
| HSK40E ER20-080 | 0.6~13.0 | 34 | 80 | 60 | 32~41 | CAP-ER20 | ER-M14 | ER20 | PHS-ER20 |
| HSK40E ER25-080 | 0.6~16.0 | 42 | 80 | 60 | 35~40 | CAP-ER25 | ER-M18 | ER25 | PHS-ER25 |
| Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|---|
| HSK50E ER16-100 | 0.6~10.0 | 28 | 100 | 74 | 29~58 | CAP-ER16 | ER-M11 | ER16 | PHS-ER16 |
| HSK50E ER20-100 | 0.6~13.0 | 34 | 100 | 74 | 32~59 | CAP-ER20 | ER-M14 | ER20 | PHS-ER20 |
| HSK50E ER25-100 | 0.6~16.0 | 42 | 100 | 74 | 35~73 | CAP-ER25 | ER-M18 | ER25 | PHS-ER25 |
| HSK50E ER32-100 | 1.6~20.0 | 50 | 100 | 74 | 41~78 | CAP-ER32 | ER-M22 | ER32 | PHS-ER32 |
