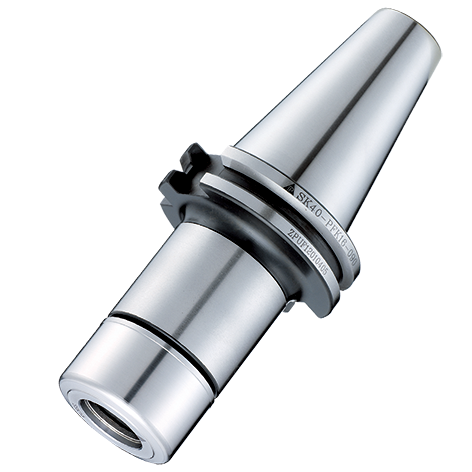

SK-PFKS

PFKS 高速刀把-SK

偏摆跳动≦0.005mm(4倍长)
筒夹采用单边4°角度设计并提高刀把夹持力
采全圆式螺帽,可减少风阻提高稳定度
全系列动平衡

動平衡 Balancing

SK40 Max.25,000 RPM Or U<= 1gmm
SK50 Max.20,000 RPM Or U<= 1gmm
SK40 Max.25,000 RPM Or U<= 1gmm
SK50 Max.20,000 RPM Or U<= 1gmm

Dimensions

尺寸標示與詳細規格比較

Order No.
订购编号
FIGRange ∅d
夹持范围
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夹持深度
Nut
螺帽
Screw
调整螺丝
Collet
筒夹
Wrench
扳手
SK40 PFK10-090S21.75~10.027.527.5907130~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
SK40 PFK10-120S11.75~10.027.5321201017030~50CAP-PFK10SPFK-M12SK10-P PHS-10-TW275
SK40 PFK16-090S22.75~16.04040907140~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
SK40 PFK16-120S22.75~16.0404012010140~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
Order No.
订购编号
FIGRange ∅d
夹持范围
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夹持深度
Nut
螺帽
Screw
调整螺丝
Collet
筒夹
Wrench
扳手
SK50 PFK10-105S11.75~10.027.532105867030~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
SK50 PFK10-135S11.75~10.027.5321351167030~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
SK50 PFK10-165S11.75~10.027.5321651467530~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
SK50 PFK16-105S22.75~16.040401058640~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
SK50 PFK16-165S12.75~16.040501651469540~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400

備註 Remarks

  • 需配合3μ P 筒夹 With 3μ P Grade Collet
