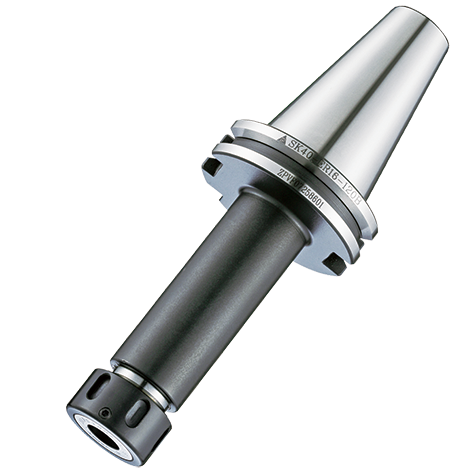

Dimensions
尺寸標示與詳細規格比較
Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|
SK40 ER11-090B | 1.0~7.0 | 23.5 | 90 | 71 | 19~48 | CAP-ER11B | ER-M8 | ER11-HP | PHS-ER11B |
SK40 ER11-120B | 1.0~7.0 | 23.5 | 120 | 101 | 19~48 | CAP-ER11B | ER-M8 | ER11-HP | PHS-ER11B |
SK40 ER16-090B | 1.0~10.0 | 32 | 90 | 71 | 29~58 | CAP-ER16B | ER-M11 | ER16-HP | PHS-ER16B |
SK40 ER16-120B | 1.0~10.0 | 32 | 120 | 101 | 29~58 | CAP-ER16B | ER-M11 | ER16-HP | PHS-ER16B |
SK40 ER20-090B | 1.0~13.0 | 36 | 90 | 71 | 32~68 | CAP-ER20B | ER-M14 | ER20-HP | PHS-ER20B |
SK40 ER20-120B | 1.0~13.0 | 36 | 120 | 101 | 32~68 | CAP-ER20B | ER-M14 | ER20-HP | PHS-ER20B |
SK40 ER25-090B | 1.0~16.0 | 43 | 90 | 71 | 35~73 | CAP-ER25B | ER-M18 | ER25-HP | PHS-ER25 |
SK40 ER25-120B | 1.0~16.0 | 43 | 120 | 101 | 35~73 | CAP-ER25B | ER-M18 | ER25-HP | PHS-ER25 |
SK40 ER32-090B | 2.0~20.0 | 51 | 90 | 71 | 41~78 | CAP-ER32B | ER-M22 | ER32-HP | PHS-ER32 |
SK40 ER32-120B | 2.0~20.0 | 51 | 120 | 101 | 41~78 | CAP-ER32B | ER-M22 | ER32-HP | PHS-ER32 |
SK40 ER40-090B | 3.0~26.0 | 63 | 90 | 71 | 50~93 | CAP-ER40B | ER-M28 | ER40-HP | PHS-ER40 |
SK40 ER40-120B | 3.0~26.0 | 63 | 120 | 101 | 50~93 | CAP-ER40B | ER-M28 | ER40-HP | PHS-ER40 |
Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|
SK50 ER16-100B | 1.0~10.0 | 32 | 100 | 81 | 29~58 | CAP-ER16B | ER-M11 | ER16-HP | PHS-ER16B |
SK50 ER16-130B | 1.0~10.0 | 32 | 130 | 111 | 29~58 | CAP-ER16B | ER-M11 | ER16-HP | PHS-ER16B |
SK50 ER16-160B | 1.0~10.0 | 32 | 160 | 141 | 29~58 | CAP-ER16B | ER-M11 | ER16-HP | PHS-ER16B |
SK50 ER20-100B | 1.0~13.0 | 36 | 100 | 81 | 32~68 | CAP-ER20B | ER-M14 | ER20-HP | PHS-ER20B |
SK50 ER20-130B | 1.0~13.0 | 36 | 130 | 111 | 32~68 | CAP-ER20B | ER-M14 | ER20-HP | PHS-ER20B |
SK50 ER20-160B | 1.0~13.0 | 36 | 160 | 141 | 32~68 | CAP-ER20B | ER-M14 | ER20-HP | PHS-ER20B |
SK50 ER25-100B | 1.0~16.0 | 43 | 100 | 81 | 35~73 | CAP-ER25B | ER-M18 | ER25-HP | PHS-ER25 |
SK50 ER251-130B | 1.0~16.0 | 43 | 130 | 111 | 35~73 | CAP-ER25B | ER-M18 | ER-M18 | PHS-ER25 |
SK50 ER25-160B | 1.0~16.0 | 43 | 160 | 141 | 35~73 | CAP-ER25B | ER-M18 | ER25-HP | PHS-ER25 |
SK50 ER32-100B | 2.0~20.0 | 51 | 100 | 81 | 41~78 | CAP-ER32B | ER-M22 | ER32-HP | PHS-ER32 |
SK50 ER32-130B | 2.0~20.0 | 51 | 130 | 111 | 41~78 | CAP-ER32B | ER-M22 | ER32-HP | PHS-ER32 |
SK50 ER32-160B | 2.0~20.0 | 51 | 160 | 141 | 41~78 | CAP-ER32B | ER-M22 | ER32-HP | PHS-ER32 |
SK50 ER40-100B | 3.0.~26.0 | 63 | 100 | 81 | 50~93 | CAP-ER40B | ER-M28 | ER40-HP | PHS-ER40 |
SK50 ER40-130B | 3.0~26.0 | 63 | 130 | 111 | 50~93 | CAP-ER40B | ER-M28 | ER40-HP | PHS-ER40 |
SK50 ER40-160B | 3.0~26.0 | 63 | 160 | 141 | 50~93 | CAP-ER40B | ER-M28 | ER40-HP | PHS-ER40 |
備註 Remarks
- 需配合3μ HP 筒夹 With 3μ HP Grade Collet
- 若需出水型刀把,请参考选用说明
