SK-ER

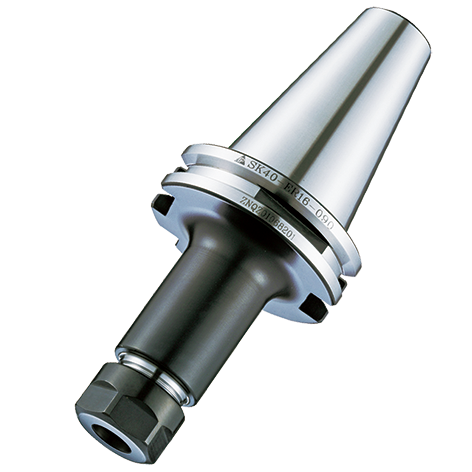

ER 筒夹刀把-SK

通用性高,可配合各种不同加工

Dimensions

尺寸標示與詳細規格比較

Order No. 订购编号Range ∅d 夹持范围∅d1LL1Tool Clamping Depth L3 刀具夹持深度Nut 螺帽Screw 调整螺丝Collet 筒夹Wrench 板手
SK40 ER11-0900.6~7.019907119~48CAP-ER11ER-M8ER11 PHS-ER11
SK40 ER11-1200.6~7.01912010119~48CAP-ER11ER-M8ER11 PHS-ER11
SK40 ER16-0900.6~10.028907129~58CAP-ER16ER-M11ER16 PHS-ER16
SK40 ER16-1200.6~10.02812010129~58CAP-ER16ER-M11ER16 PHS-ER16
SK40 ER20-0900.6~13.034907132~68CAP-ER20ER-M14ER20 PHS-ER20
SK40 ER20-1200.6~13.03412010132~68CAP-ER20ER-M14ER20 PHS-PFK16 PHS-ER20
SK40 ER25-0900.6~16.042907135~73CAP-ER25ER-M18ER25 PHS-ER25
SK40 ER25-1200.6~16.04212010135~73CAP-ER25ER-M18ER25 PHS-ER25
SK40 ER32-0901.6~20.050907141~78CAP-ER32ER-M22ER32 PHS-ER32
SK40 ER32-1201.6~20.05012010141~78CAP-ER32ER-M22ER32 PHS-ER32
SK40 ER40-0902.6~26.063907150~93CAP-ER40ER-M28ER40 PHS-ER40
SK40 ER40-1202.6~26.06312010150~93CAP-ER40ER-M28ER40 PHS-ER40
Order No. 订购编号Range ∅d 夹持范围∅d1LL1Tool Clamping Depth L3 刀具夹持深度Nut 螺帽Screw 调整螺丝Collet 筒夹Wrench 板手
SK50 ER16-1000.6~10.0281008129~58CAP-ER16ER-M11ER16 PHS-ER16
SK50 ER16-1300.6~10.02813011129~58CAP-ER16ER-M11ER16 PHS-ER16
SK50 ER16-1600.6~10.02816014129~58CAP-ER16ER-M11ER16 PHS-ER16
SK50 ER20-1000.6~13.0341008132~68CAP-ER20ER-M14ER20 PHS-ER20
SK50 ER20-1300.6~13.03413011132~68CAP-ER20ER-M14ER20 PHS-ER20
SK50 ER20-1600.6~13.03416014132~68CAP-ER20ER-M14ER20 PHS-ER20
SK50 ER25-1000.6~16.0421008135~73CAP-ER25ER-M18ER25 PHS-ER25
SK50 ER25-1300.6~16.04213011135~73CAP-ER25ER-M18ER25 PHS-ER25
SK50 ER25-1600.6~16.04216014135~73CAP-ER25ER-M18ER25 PHS-ER25
SK50 ER32-1001.6~20.0501008141~78CAP-ER32ER-M22ER32 PHS-ER32
SK50 ER32-1301.6~20.05013011141~78CAP-ER32ER-M22ER32 PHS-ER32
SK50 ER32-1601.6~20.05016014141~78CAP-ER32ER-M22ER32 PHS-ER32
SK50 ER40-1002.6~26.0631008150~93CAP-ER40ER-M28ER40 PHS-ER40
SK50 ER40-1302.6~26.06313011150~93CAP-ER40ER-M28ER40 PHS-ER40
SK50 ER40-1602.6~26.06316014150~93CAP-ER40ER-M28ER40 PHS-ER40

備註 Remarks

精密刀把系列產品

深孔加工・3μm 高精度・減少刀具磨耗

熱縮刀把

Shrink Fit Chuck

10 秒內快速夾換刀・3μm 高精度

油壓刀把

Hydraulic Chuck

重切削・5μm 高精度・超強夾持扭力

HER筒夾刀把

Her Collet Chuck
