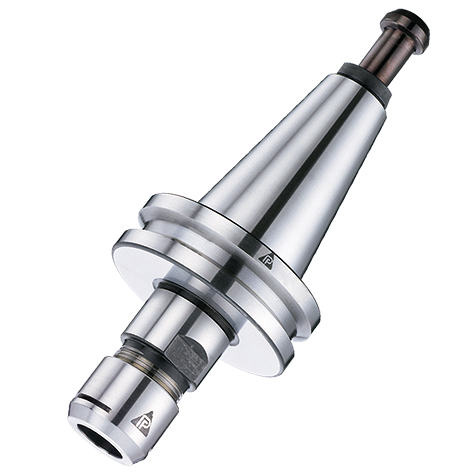

Dimensions
尺寸標示與詳細規格比較
Order No. 订购编号 | FIG | Range ∅d 夹持范围 | ∅D | L | L1 | Pull Stud 拉杆 | Nut 螺帽 | Collet 筒夹 | Wrench 扳手A | Wrench 扳手B |
---|---|---|---|---|---|---|---|---|---|---|
ISO20 ER16-035MS | 1 | 0.6~10.0 | 22 | 35 | 26 | PSD-PI20T-42 | CAP-ER16MS | ER16 | PHS-ER16MS | PHS-ISO20 |
Order No. 订购编号 | FIG | Range ∅d 夹持范围 | ∅D | L | L1 | Pull Stud 拉杆 | Nut 螺帽 | Collet 筒夹 | Wrench 扳手A | Wrench 扳手B |
---|---|---|---|---|---|---|---|---|---|---|
ISO25 ER16-035MS | 1 | 0.6~10.0 | 22 | 35 | 26.2 | PSD-PI25T-42 | CAP-ER16MS | ER16 | PHS-ER16MS | PHS-ISO25 |
ISO25 ER20-035MS | 1 | 0.6~13.0 | 28 | 35 | 26.2 | PSD-PI25T-42 | CAP-ER20MS | ER20 | PHS-ER20MS | PHS-ISO25 |
Order No. 订购编号 | FIG | Range ∅d 夹持范围 | ∅D | L | L1 | Pull Stud 拉杆 | Nut 螺帽 | Collet 筒夹 | Wrench 扳手A | Wrench 扳手B |
---|---|---|---|---|---|---|---|---|---|---|
ISO30 ER16-060MS | 2 | 0.6~10.0 | 22 | 60 | 40.9 | PSD-PI30T-42 | CAP-ER16MS | ER16 | PHS-ER16MS | |
ISO30 ER25-060MS | 2 | 0.6~16.0 | 35 | 60 | 40.9 | PSD-PI30T-42 | CAP-ER25MS | ER25 | PHS-ER25MS | PHS-ISO30 |
