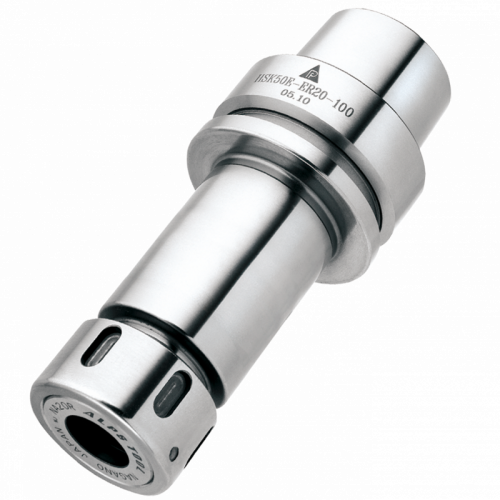

Dimensions
尺寸標示與詳細規格比較
| Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|---|
| HSK40E ER20-080BR | 1.0~13.0 | 36 | 80 | 60 | 32~41 | CAP-ER20BR | ER-M14 | ER20-HP | PHS-ER20B |
| HSK40E ER25-080BR | 1.0~16.0 | 43 | 80 | 60 | 35~40 | CAP-ER25BR | ER-M18 | ER25-HP | PHS-ER25 |
| Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|---|
| HSK50E ER16-100BR | 1.0~10.0 | 32 | 100 | 74 | 29~58 | CAP-ER16BR | ER-M11 | ER16-HP | PHS-ER16B |
| HSK50E ER20-100BR | 1.0~13.0 | 36 | 100 | 74 | 32~59 | CAP-ER20BR | ER-M14 | ER20-HP | PHS-ER20B |
| HSK50E ER25-100BR | 1.0~16.0 | 43 | 100 | 74 | 35~57 | CAP-ER16BR25 | ER-M118 | ER25-HP | PHS-ER25 |
| HSK50E ER32-100BR | 2.0~20.0 | 51 | 100 | 74 | 41~56 | CAP-ER32BR | ER-M11 | ER32-HP | PHS-ER32 |
