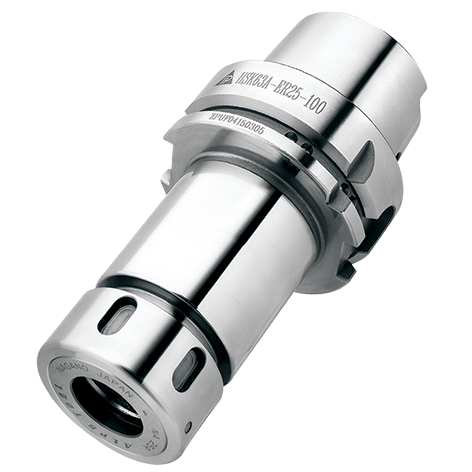

Dimensions
尺寸標示與詳細規格比較
Order No. 订购编号 | FIG | Range ∅d 夹持范围 | ∅d1 | ∅d2 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | L3 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
HSK50A ER16-100BR | 1 | 1.0~10.0 | 32 | 100 | 74 | 29~58 | CAP-ER16BR | ER-M11 | ER16-HP | PHS-ER16B | ||
HSK50A ER32-100BR | 1 | 2.0~20.0 | 51 | 100 | 74 | 41~56 | CAP-ER32BR | ER-M22 | ER32-HP | PHS-ER32 |
Order No. 订购编号 | FIG | Range ∅d 夹持范围 | ∅d1 | ∅d2 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | L3 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
HSK63A ER16-100BR | 2 | 1.0~10.0 | 32 | 50 | 100 | 74 | 29~58 | 64 | CAP-ER16BR | ER-M11 | ER16-HP | PHS-ER16B |
HSK63A ER16-160BR | 2 | 1.0~10.0 | 32 | 50 | 160 | 134 | 29~58 | 120 | CAP-ER16BR | ER-M11 | ER16-HP | PHS-ER16B |
HSK63A ER25-100BR | 1 | 1.0~16.0 | 43 | 100 | 74 | 35~55 | CAP-ER25BR | ER-M18 | ER25-HP | PHS-ER25 | ||
HSK63A ER25-160BR | 1 | 1.0~16.0 | 43 | 160 | 134 | 35~73 | CAP-ER25BR | ER-M18 | ER25-HP | PHS-ER25 | ||
HSK63A ER32-100BR | 1 | 2.0~20.0 | 51 | 100 | 74 | 41~55 | CAP-ER32BR | ER-M22 | ER32-HP | PHS-ER32 | ||
HSK63A ER32-160BR | 1 | 2.0~20.0 | 51 | 160 | 134 | 41~78 | CAP-ER32BR | ER-M22 | ER32-HP | PHS-ER32 |
Order No. 订购编号 | FIG | Range ∅d 夹持范围 | ∅d1 | ∅d2 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | L3 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
HSK100A ER16-100BR | 1 | 1.0~10.0 | 32 | 100 | 71 | 29~58 | CAP-ER16BR | ER-M11 | ER16-HP | PHS-ER16B | ||
HSK100A ER16-160BR | 1 | 1.0~10.1 | 32 | 160 | 131 | 29~58 | CAP-ER16BR | ER-M11 | ER16-HP | PHS-ER16B | ||
HSK100A ER25-100BR | 1 | 1.0~16.0 | 43 | 100 | 71 | 35~53 | CAP-ER25BR | ER-M18 | ER25-HP | PHS-ER25 | ||
HSK100A ER25-160BR | 1 | 1.0~16.0 | 43 | 160 | 131 | 35~73 | CAP-ER25BR | ER-M18 | ER25-HP | PHS-ER25 | ||
HSK100A ER32-100BR | 1 | 2.0~20.0 | 51 | 100 | 71 | 41~49 | CAP-ER32BR | ER-M22 | ER32-HP | PHS-ER32 | ||
HSK100A ER32-160BR | 1 | 2.0~20.0 | 51 | 160 | 131 | 41~78 | CAP-ER32BR | ER-M22 | ER32-HP | PHS-ER32 |
