BTT-PFKS

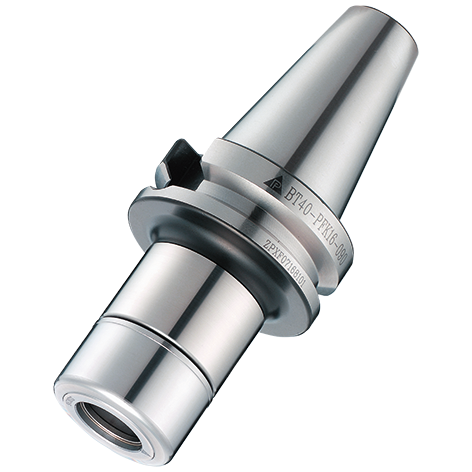

PFK高速全圆螺帽刀把-BTT

全系列动平衡
偏摆跳动≦0.005mm(4倍长)
筒夹采用单边4°角度设计并提高刀把夹持力
采全圆式螺帽,可减少风阻提高稳定度

動平衡 Balancing

BT30/BT40 Max.25,000 RPM Or U<= 1gmm
BT50 Max.20,000 RPM Or U<= 1gmm

Dimensions

尺寸標示與詳細規格比較

Order No.
订购编号
FIGRange ∅d
夹持范围
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夹持深度
Nut
螺帽
Screw
调整螺丝
Collet
筒夹
Wrench
扳手
BT30(BTT30) PFK10-060S21.75~10.027.527.5603830~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
BT30(BTT30) PFK10-090S21.75~10.027.527.5906830~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
BT30(BTT30) PFK10-120S21.75~10.027.527.51209830~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
BT30(BTT30) PFK16-060S22.75~16.04040603840~54CAP-PFK16SPFK-M12SK16-PPHS-20-RO400
BT30(BTT30) PFK16-090S22.75~16.04040906840~70CAP-PFK16SPFK-M12SK16-PPHS-20-RO400
BT30(BTT30) PFK16-120S22.75~16.040401209840~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
Order No.
订购编号
FIGRange ∅d
夹持范围
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夹持深度
Nut
螺帽
Screw
调整螺丝
Collet
筒夹
Wrench
扳手
BT40(BTT40) PFK10-060S21.75~10.027.527.5603330~50CAP-PFK10SPFK-M12SK10-PPHS-10TW275
BT40(BTT40) PFK10-090S21.75~10.027.527.5906330~50CAP-PFK10SPFK-M12SK10-PPHS-10TW275
BT40(BTT40) PFK10-120S11.75~10.027.532120937030~50CAP-PFK10SPFK-M12SK10-PPHS-10TW275
BT40(BTT40) PFK10-150S11.75~10.027.5321501237030~50CAP-PFK10SPFK-M12SK10-PPHS-10TW275
BT40(BTT40) PFK16-060S22.75~16.04040603350~65CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
BT40(BTT40) PFK16-090S22.75~16.04040906340~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
BT40(BTT40) PFK16-120S22.75~16.040401209340~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
BT40(BTT40) PFK16-150S22.75~16.0404015012340~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
Order No.
订购编号
FIGRange ∅d
夹持范围
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夹持深度
Nut
螺帽
Screw
调整螺丝
Collet
筒夹
Wrench
扳手
BT50(BTT50) PFK10-105S21.75~10.027.527.51056730~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
BT50(BTT50) PFK10-135S11.75~10.027.532135977030~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
BT50(BTT50) PFK10-165S11.75~10.027.5321651277530~50CAP-PFK10SPFK-M12SK10-PPHS-10-TW275
BT50(BTT50) PFK16-105S22.75~16.040401056740~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
BT50(BTT50) PFK16-135S22.75~16.040401359740~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400
BT50(BTT50) PFK16-165S12.75~16.040501651279040~70CAP-PFK16SPFK-M18SK16-PPHS-20-RO400

備註 Remarks

  • 需配合3µ P筒夹 With 3µ P Grade Collet
