Dimensions
尺寸標示與詳細規格比較
Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|
BT30 (BTT30) ER11-070M | 0.6~7.0 | 16 | 70 | 48 | 19~48 | CAP-ER11M | ER-M8 | ER-11 | PHS-ER11M |
BT30 (BTT30) ER11-100M | 0.6~7.0 | 16 | 100 | 78 | 19~48 | CAP-ER11M | ER-M8 | ER-11 | PHS-ER11M |
BT30 (BTT30) ER11-120M | 0.6~7.0 | 16 | 120 | 98 | 19~48 | CAP-ER11M | ER-M8 | ER-11 | PHS-ER11M |
BT30 (BTT30) ER16-070M | 0.6~10.0 | 22 | 70 | 48 | 29~58 | CAP-ER16M | ER-M11 | ER-16 | PHS-ER16M |
BT30 (BTT30) ER16-100M | 0.6~10.0 | 22 | 100 | 78 | 29~58 | CAP-ER16M | ER-M11 | ER-16 | PHS-ER16M |
BT30 (BTT30) ER16-120M | 0.6~10.0 | 22 | 120 | 98 | 29~58 | CAP-ER16M | ER-M11 | ER-16 | PHS-ER16M |
BT30 (BTT30) ER20-070M | 0.6~13.0 | 28 | 70 | 48 | 32~68 | CAP-ER20M | ER-M14 | ER-20 | PHS-ER20M |
BT30 (BTT30) ER20-100M | 0.6~13.0 | 28 | 100 | 78 | 32~68 | CAP-ER20M | ER-M14 | ER-20 | PHS-ER20M |
BT30 (BTT30) ER20-120M | 0.6~13.0 | 28 | 120 | 98 | 32~68 | CAP-ER20M | ER-M14 | ER-20 | PHS-ER20M |
Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|
BT40 (BTT40) ER11-090M | 0.6~7.0 | 16 | 90 | 63 | 19~48 | CAP-ER11M | ER-M8 | ER11 | PHS-ER11M |
BT40 (BTT40) ER11-120M | 0.6~7.0 | 16 | 120 | 93 | 19~48 | CAP-ER11M | ER-M8 | ER11 | PHS-ER11M |
BT40 (BTT40) ER16-090M | 0.6~10.0 | 22 | 90 | 63 | 29~58 | CAP-ER16M | ER-M11 | ER16 | PHS-ER16M |

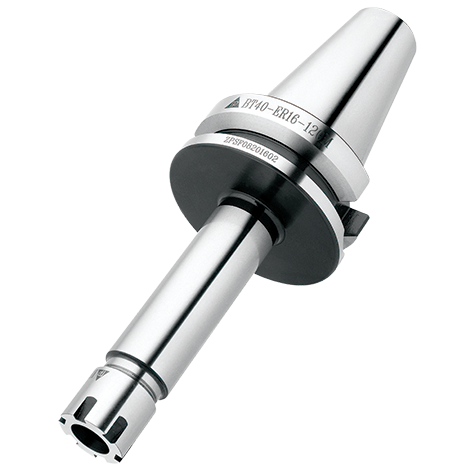

BT40 (BTT40) ER16-120M | 0.6~10.0 | 22 | 120 | 93 | 29~58 | CAP-ER16M | ER-M11 | ER16 | PHS-ER16M |
BT40 (BTT40) ER16-150M | 0.6~10.0 | 22 | 150 | 123 | 29~58 | CAP-ER16M | ER-M11 | ER16 | PHS-ER16M |
BT40 (BTT40) ER20-090M | 0.6~13.0 | 28 | 90 | 63 | 32~68 | CAP-ER20M | ER-M14 | ER20 | PHS-ER20M |
BT40 (BTT40) ER20-120M | 0.6~13.0 | 28 | 120 | 93 | 32~68 | CAP-ER20M | ER-M14 | ER20 | PHS-ER20M |
BT40 (BTT40) ER20-150M | 0.6~13.0 | 28 | 150 | 123 | 32~68 | CAP-ER20M | ER-M14 | ER20 | PHS-ER20M |
Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Nut 螺帽 | Screw 调整螺丝 | Collet 筒夹 | Wrench 扳手 |
---|---|---|---|---|---|---|---|---|---|
BT50(BTT50) ER16-105M | 0.6~10.0 | 22 | 105 | 67 | 29~58 | CAP-ER16M | ER-M11 | ER16 | PHS-ER16M |
BT50(BTT50) ER16-135M | 0.6~10.0 | 22 | 135 | 97 | 29~58 | CAP-ER16M | ER-M11 | ER16 | PHS-ER16M |
BT50(BTT50) ER16-165M | 0.6~10.0 | 22 | 165 | 127 | 29~58 | CAP-ER16M | ER-M11 | ER16 | PHS-ER16M |
BT50(BTT50) ER20-105M | 0.6~13.0 | 28 | 105 | 67 | 32~68 | CAP-ER20M | ER-M14 | ER20 | PHS-ER20M |
BT50(BTT50) ER20-135M | 0.6~13.0 | 28 | 135 | 97 | 32~68 | CAP-ER20M | ER-M14 | ER20 | PHS-ER20M |
BT50(BTT50) ER20-165M | 0.6~13.0 | 28 | 165 | 127 | 32~68 | CAP-ER20M | ER-M14 | ER20 | PHS-ER20M |
備註 Remarks
- 若需出水型刀把,请参考选用说明
