BT-FMA/FMB

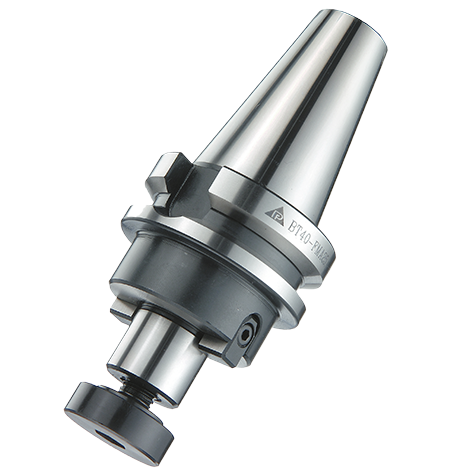

FMA/FMB 面铣刀用刀把-BT

平面铣削刀盘专用刀把
适用平面铣削加工

動平衡 Balancing

英制铣刀用 Inch size
公制铣刀用 Metric size

Dimensions

尺寸標示與詳細規格比較

Order No.
订购编号
∅D∅C1∅C2LHKW共用螺栓 M
Bolt
介止
Spacer Ring
BT30(BTT30) FMA25.4-03025.44533302059.5M12xP1.75FMSP-25.4
BT30(BTT30) FMA25.4-04525.44533452059.5M12xP1.75FMSP-25.4
BT30(BTT30) FMA25.4-06025.44533602059.5M12xP1.75FMSP-25.4
Order No.
订购编号
∅D∅C1∅C2LHKW共用螺栓 M
Bolt
介止
Spacer Ring
BT40(BTT40) FMA25.4-04525.45033452059.5M12xP1.75FMSP-25.4
BT40(BTT40) FMA25.4-09025.45033902059.5M12xP1.75FMSP-25.4
BT40(BTT40) FMA31.75-04531.7560404522712.7M16xP2.0FMSP-31.75
BT40(BTT40) FMA31.75-09031.7560409022712.7M16xP2.0FMSP-31.75
BT40(BTT40) FMA38.1-07538.178506026915.9M20xP2.5FMSP-38.1
Order No.
订购编号
∅D∅C1∅C2LHKW共用螺栓 M
Bolt
介止
Spacer Ring
BT50(BTT50) FMA25.4-09025.45033902059.5M12xP1.75FMSP-25.4
BT50(BTT50) FMA31.75-07531.7560407522712.7M16xP2.0FMSP-31.75
BT50(BTT50) FMA38.1-07538.180507526915.9M20xP2.5FMSP-38.1
Order No.
订购编号
∅D∅C1∅C2LHKW共用螺栓 M
Bolt
介止
Spacer Ring
BT30(BTT30) FMB16--045S ★16322045173.88M8xP1.25FMSP-16
BT30(BTT30) FMB22--0452245284518510M10xP1.5FMSP-22
BT30(BTT30) FMB22--045S ★2240284518510M10xP1.5FMSP-22
BT30(BTT30) FMB27--0452758334520612M12xP1.75FMSP-27
BT30(BTT30) FMB27--045S ★2748334520612M12xP1.75FMSP-27
Order No.
订购编号
∅D∅C1∅C2LHKW共用螺栓 M
Bolt
介止
Spacer Ring
BT40(BTT40) FMB16--045S ★16322045173.88M8xP1.25FMSP-16
BT40(BTT40) FMB22-0452248284518510M10xP1.5FMSP-22
BT40(BTT40) FMB22--045S ★2240284518510M10xP1.5FMSP-22
BT40(BTT40) FMB27--0602758336020612M12xP1.75FMSP-27
BT40(BTT40) FMB27--060S ★2748336020612M12xP1.75FMSP-27
BT40(BTT40) FMB32--0603278406022714M16xP2.0FMSP-32
BT40(BTT40) FMB32--060S ★3258406022714M16xP2.0FMSP-32
BT40(BTT40) FMB40--06040795060268.515.9M20xP2.5FMSP-40
BT40(BTT40) FMB40--060S ★40765060268.315.9M20xP2.5FMSP-40
Order No.
订购编号
∅D∅C1∅C2LHKW共用螺栓 M
Bolt
介止
Spacer Ring
BT50(BTT50) FMB27--0902758339020612M12xP1.75FMSP-27
BT50(BTT50) FMB27--090S ★2748339020612M12xP1.75FFMSP-27
BT50(BTT50) FMB32--0903278409022714M16xP2.0FMSP-32
BT50(BTT50) FMB32--090S ★3258409022714M16xP2.0FMSP-32
BT50(BTT50) FMB40--09040805090268.515.9M20xP2.5FMSP-40
BT50(BTT50) FMB40--090S ★40765090268.5159M20xP2.5FMSP-40

備註 Remarks

  • ★ 需配合 SANDVIK 面铣刀之刀把规格尺寸

精密刀把系列產品

深孔加工・3μm 高精度・減少刀具磨耗

熱縮刀把

Shrink Fit Chuck

10 秒內快速夾換刀・3μm 高精度

油壓刀把

Hydraulic Chuck

重切削・5μm 高精度・超強夾持扭力

HER筒夾刀把

Her Collet Chuck
